all aluminum

Strip of SlatWall

Interlocking Aluminum SlatWall for Workshop, Factory, Retail and Garage.

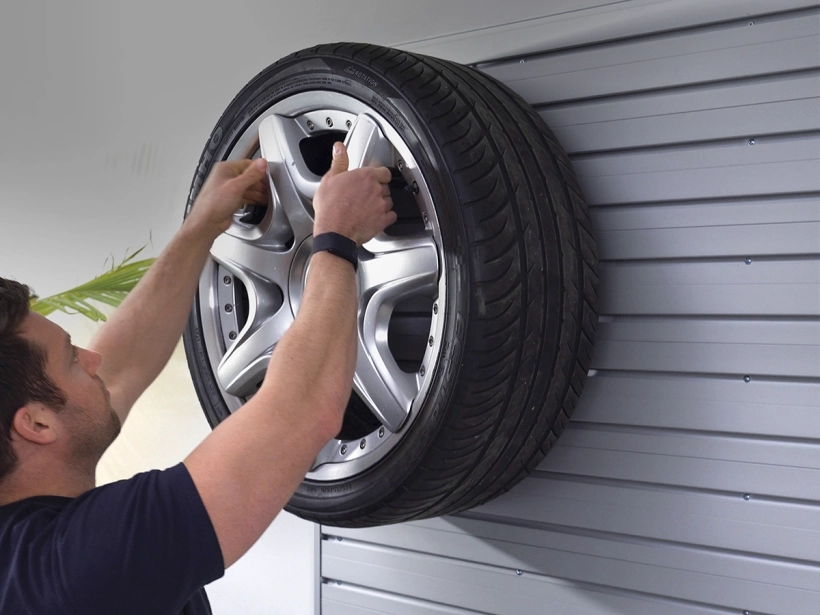

SlatWall EMX™ is an interlocking all-aluminum slatwall system for storage, organization and display. The proven T-Channel design allows free movement of hooks for fine adjustment of their horizontal position. Hooks attach simply by sliding into any groove from the front of the panel. SlatWall EMX™ panels are 100% aluminum and are built tough to withstand the extreme heat, cold, and humidity of both indoor and outdoor work environments. Load Capacity is 50 lbs point load on a 14”L hook (shorter hooks can hold even higher loads). Click here to see the full load capacity chart.

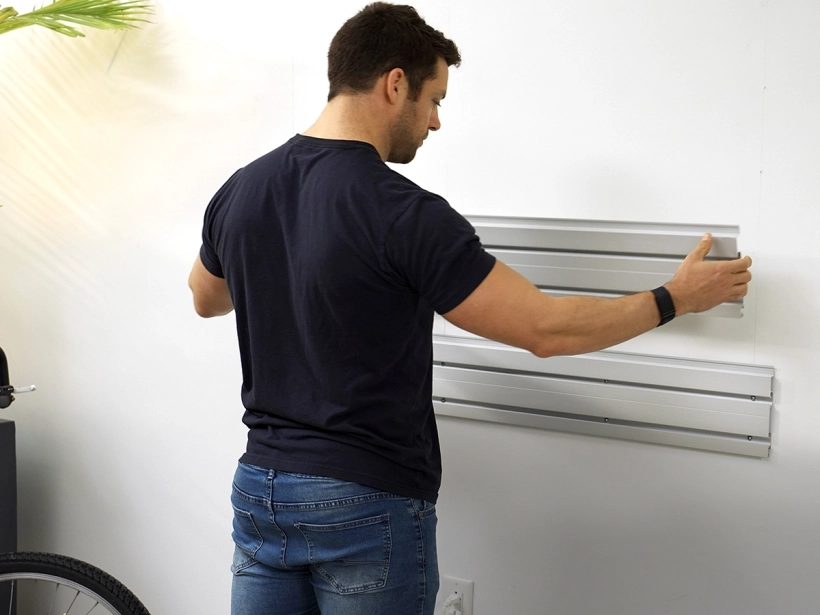

SlatWall EMX™ is the leading metal slatwall in North America. We start with aircraft grade aluminum billet and extrude it thru steel dies at tremendous pressures to create an interlocking slatwall design.  Each modular section is 6” high and is available in either 48” or 96” lengths. Simply stack sections on top of one another to create your slatwall.  You can cut SlatWall EMX™ down to any length to fit your wall.  Panels are easily attached to wood studs, drywall, or masonry. Just screw onto your wall and the SlatWall EMX™ is ready to go. No maintenance required.

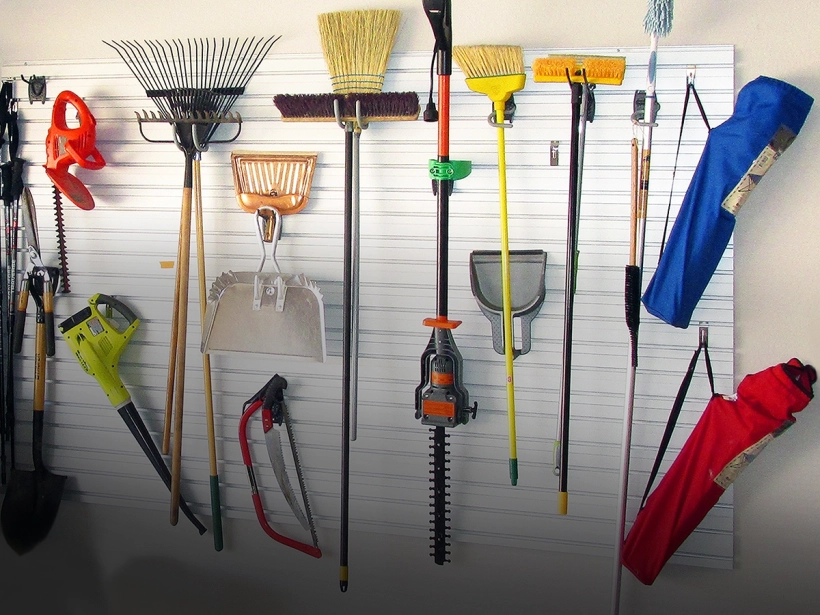

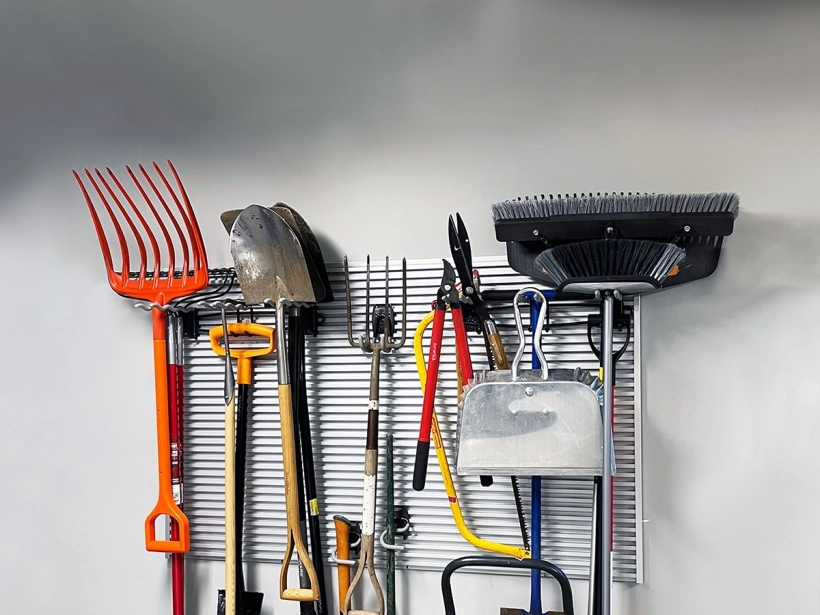

SlatWall EMX™ is a versatile storage and display system. With many hooks and accessories, you can store, organize and display just about anything. Moreover, it is adaptable -- the hooks can be custom arranged and continually rearranged to meet your specific needs. The 3”OC slat spacing assures that most hooks and accessories around the world will fit perfectly. 3” slat spacing is standard. 1”, 1.5” and 2” slat spacing are available at special request. Standard finish is clear anodized for a durable finish that resists scratching and finger prints.  Black, beige, and white powder coated colors are available by special order.  Mill finish is also available if you would like to paint it yourself.

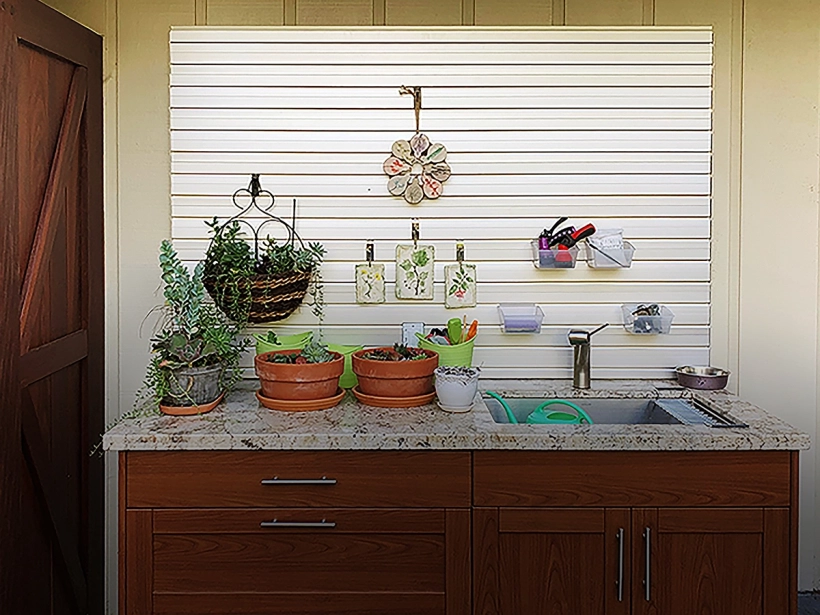

Use for storage, organization and display. For commercial, institutional and residential use. For industry, factory, office, retail spaces, workshop, garages, kitchens, tradeshows and more. Looks great, works even better™.

Works with all SlatWall Accessories:

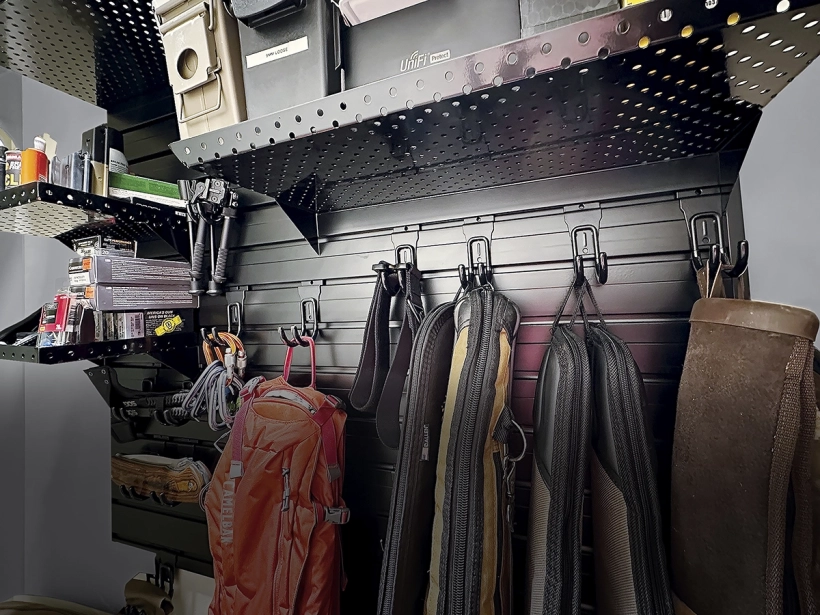

I really enjoyed the entire process - from talking about my project with the knowledgeable sales staff, to ordering, to receiving my very well packed shipment, to installing and using the product. It is an awesome system, looks so great and is strong as all heck. Thank you for everything and you count me as a diamondLife customer for life!
- Jacob M. (Chicago, IL)
BULLET all aluminum SlatWall EMX™
BULLET strong: holds up to 50 lbs point load on a 14" hook
BULLET lightweight: 50% lighter - only 1.5 lbs per square foot, compared to 3.0 lbs per square foot for traditional MDF slatwall
BULLET 3" on center spacing, like traditional slat wall (1", 1.5", 2" spacing by special order)

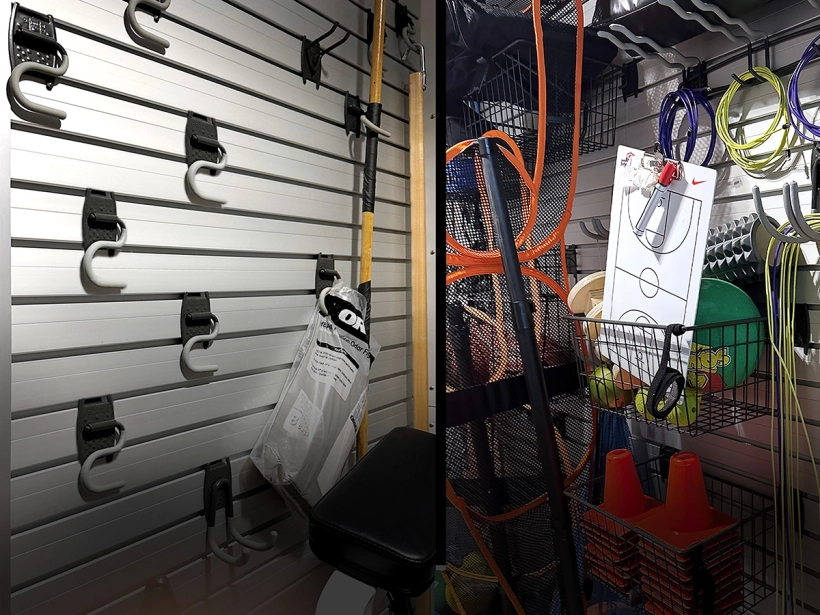

BULLET works with all standard slat wall hooks and accessories
BULLET modular to cover any size and shape wall area
BULLET create any slat wall height in 6" increments
BULLET create any slat wall width by cutting sections to any width
BULLET slat wall can be cut by using a power saw along with a blade designed to cut sheet metal
BULLET load capacity: 50lbs on 14"L hook (see full chart)
BULLET clear anodized finish (mill finish and powder coated colors available by special order)
BULLET for indoor and outdoor use

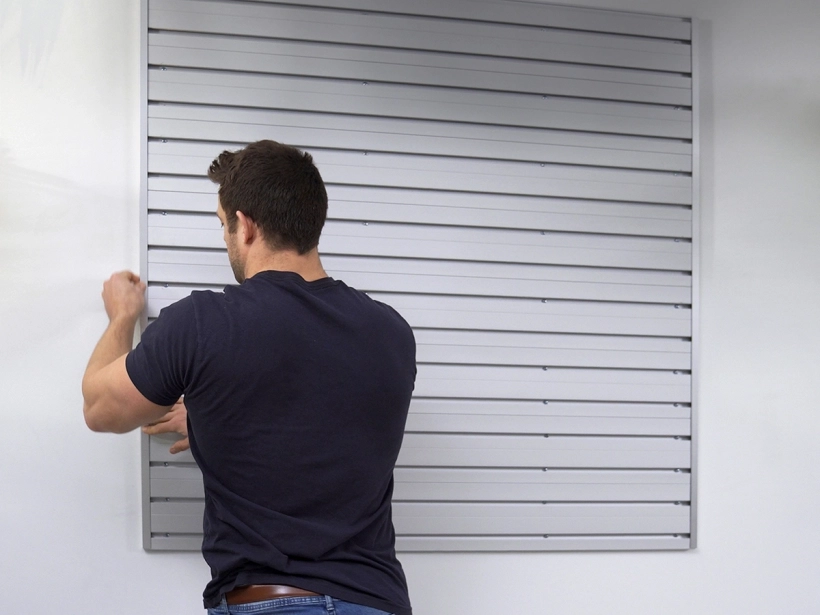

BULLET easy installation – just screw onto wall
Tools Download installation instructions: 72KB
Adobe Acrobat Reader is required to view file
Groove Spacing Assembled
Panel Height
Assembled
Panel Width
Qty
Grooves
Max Qty
Load Points per Groove
Total Load per Panel
with 50 lbs Point Load
on a 14" hook
1"      6" 48" 5 4 200 lbs
6" 96" 5 8 400 lbs
24" 48" 20 4 800 lbs
48" 48" 40 4 1,600 lbs
48" 96" 40 8 3,200 lbs
96" 48" 80 4 3,200 lbs
3"      6" 48" 2 4 200 lbs
6" 96" 2 8 400 lbs
24" 48" 8 4 800 lbs
48" 48" 16 4 1,600 lbs
48" 96" 16 8 3,200 lbs
96" 48" 32 4 3,200 lbs

BULLET Load Rating is calculated as follows:
  • adjacent load points are spaced minimum 12" apart within same groove
  • load points are positioned minimum 3" from the ends
  • load rating above is based upon fasteners spaced every 16"
  • load rating may be improved if fasteners are spaced every 6"
Your Selection
SlatWall EMX™

SlatWall EMX™

  • Product#: HSLE.AL.3.####.CLR

  • Metal: Aluminum

  • Color: Clear Anodized

  • Groove Spacing: 3"

1
Color

Clear Anodized

Black

White

2
Groove Spacing

3"

Slatwall EMX 3 inch

1"

Slatwall EMX 1 inch
3
-->
Order
Size
Price
Qty

SlatWall EMX™
  • Includes (1) 6"H x 48"L section

  • Stack sections to create larger panels

$69
$44
SPECIAL!

SlatWall EMX™
  • Includes (1) 6"H x 96"L section

  • Stack sections to create larger panels

$109
$72
SPECIAL!

SlatWall EMX™
  • Includes (4x) 6"H x 48"L modular sections to create (1) full panel 24"H x 48"L

$249
$176
SPECIAL!

SlatWall EMX™
  • Includes (8x) 6"H x 48"L modular sections to create (1) full panel 48"H x 48"L

$499
$352
SPECIAL!

SlatWall EMX™
  • Includes (8x) 6"H x 96"L modular sections to create (1) full panel 48"H x 96"L

$799
$576
SPECIAL!

SlatWall EMX™
  • Includes (16x) 6"H x 48"L modular sections to create (1) full panel 96"H x 48"L

$899
$704
SPECIAL!

Trim
(click to enlarge)
Color
Length
Price
Qty

SlatWall EMX™

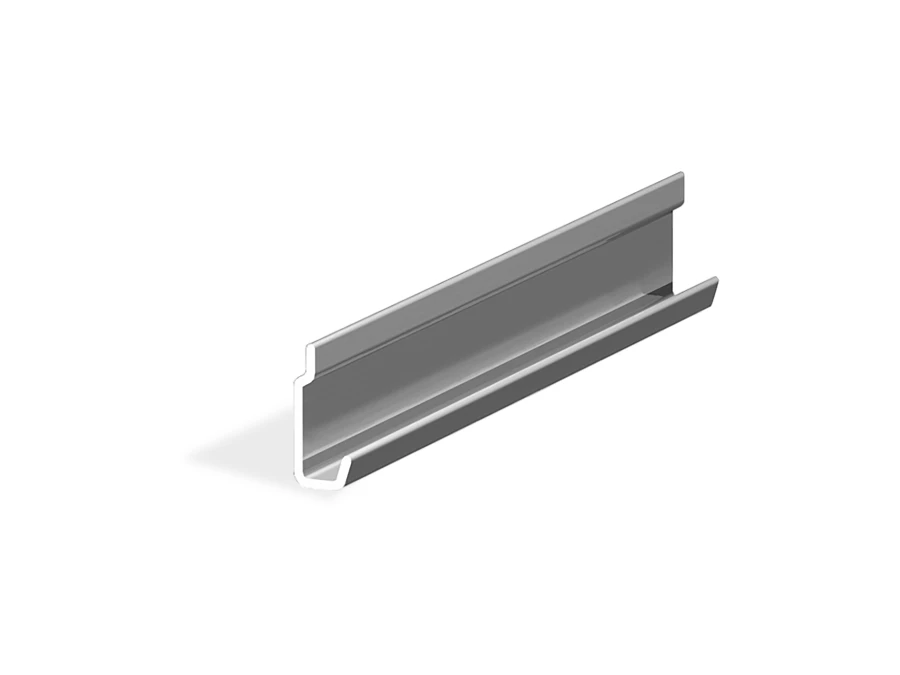

Top or Bottom Cap for SlatWall EMX™

HSLE.AL.JCAP.XX.YYY

  • for hidden fastener installations
  • use as either top or bottom trim
  • price is per piece

Clear Anodized

Black

White

Slatwall Strip - 96 inch Diamond Plate and Brushed Aluminum

$18
$10
SPECIAL!

Clear Anodized

Black

White

Slatwall Strip - 96 inch Diamond Plate and Brushed Aluminum

$36
$20
SPECIAL!

SlatWall EMX™

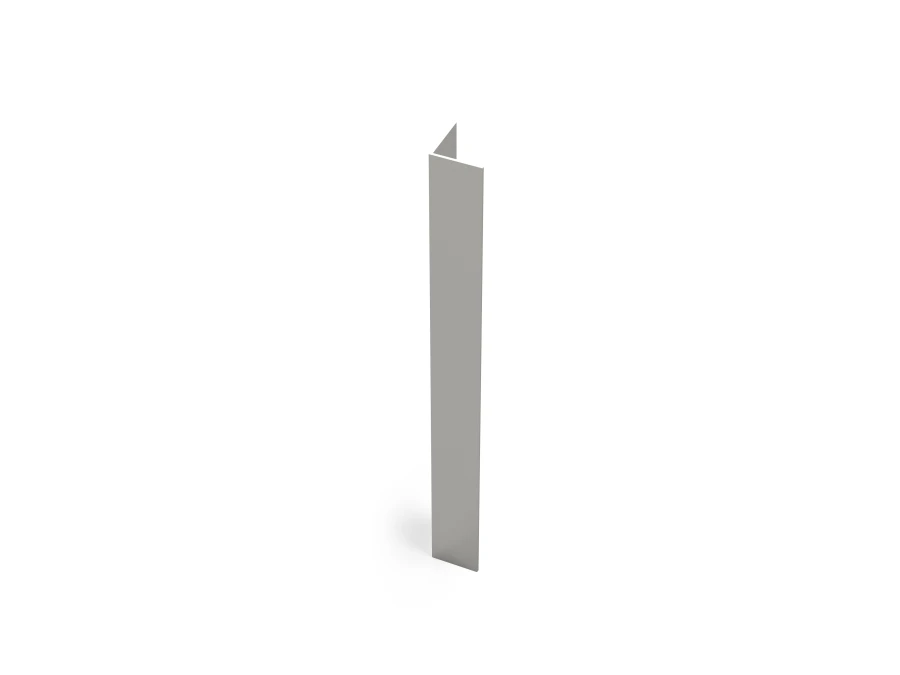

Left or Right Cap for SlatWall EMX™

HSLE.AL.ENDCAP.XX.YYY

  • use as either left or right side trim
  • price is per pair

Clear Anodized

Black

White

End Cap for SlatWall EMX - 6 inch

$39
$30
SPECIAL!

Clear Anodized

Black

White

End Cap for SlatWall EMX - 24 inch

$49
$35
SPECIAL!

Clear Anodized

Black

White

End Cap for SlatWall EMX - 48 inch

$59
$40
SPECIAL!

Clear Anodized

Black

White

End Cap for SlatWall EMX - 96 inch

$99
$80
SPECIAL!

Samples

Need a sample so you can see, touch and feel the real thing?
No problem, we can mail you a 3" wide piece at no charge.

Call us at 1.888.98.DGEAR (983.4327) EST to order.
